JDCC-P51-201615
JUDE

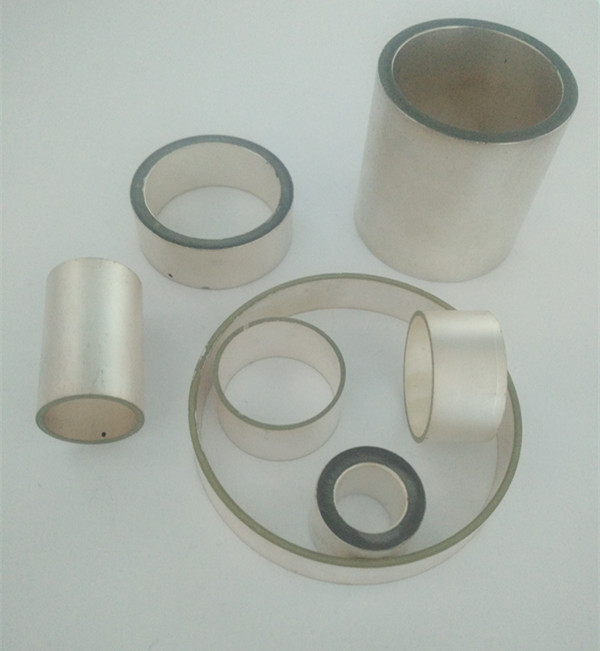

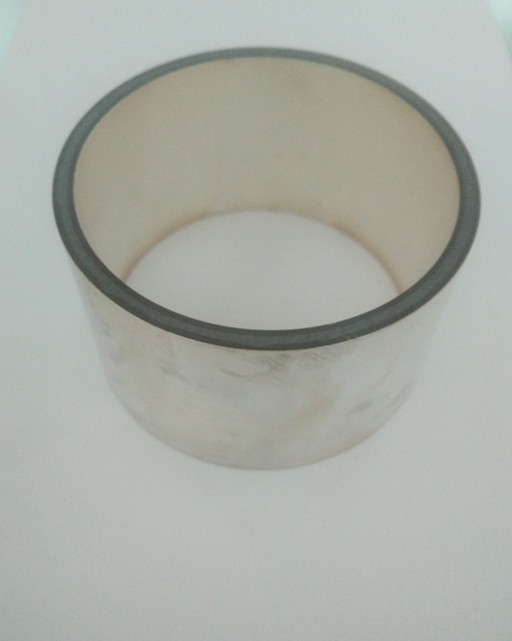

Piezoelectric ceramic tube(cylinder) components
Application: ultrasonic flaw detecting
thickness measuring
flow measuring
metal detecting
oil well measuring
Feature: high sensitivity, all direction
Specification and technical datas as following：
| Artigo No. | Frequência radial (KHz) | Coeficiente de acoplamento (K31%) | Capacidade C (PF) | Constante de alteração piezoelétrica d33 | Agente desgaste tg (%) |
| JDCC-P51-151110 | 70 ± 5% | 30 | 4680 ± 10% | 500 | 2 |
| JDCC-P51-201615 | 50 ± 5% | 30 | 9700 ± 10% | 500 | 2 |
| JDCC-P51-252115 | 39 ± 5% | 35 | 12400 ± 10% | 500 | 2 |
| JDCC-P51-292520 | 34 ± 5% | 35 | 19400 ± 10% | 550 | 2 |
| JDCC-P51-302518 | 33 ± 5% | 35 | 14250 ± 10% | 550 | 2 |
| JDCC-P51-322820 | 36 ± 5% | 35 | 21600 ± 10% | 550 | 2 |
| JDCC-P51-343020 | 28 ± 5% | 35 | 23000 ± 10% | 550 | 2 |
| JDCC-P51-383225 | 26 ± 5% | 35 | 21000 ± 10% | 550 | 2 |
| JDCC-P51-403237 | 25 ± 5% | 35 | 24000 ± 10% | 550 | 2 |
| JDCC-P51-453925 | 22 ± 5% | 35 | 25200 ± 10% | 550 | 2 |
| JDCC-P51-504425 | 19 ± 5% | 35 | 28200 ± 10% | 550 | 2 |
| JDCC-P51-553930 | 19 ± 5% | 35 | 33800 ± 10% | 550 | 2 |
| JDCC-P51-605430 | 16 ± 5% | 35 | 41000 ± 10% | 550 | 2 |
| JDCC-P51-655930 | 15 ± 5% | 35 | 44600 ± 10% | 550 | 2 |
| JDCC-P51-756716 | 13 ± 5% | 35 | 20400 ± 10% | 550 | 2 |
| JDCC-P51-807420 | 12 ± 5% | 35 | 36900 ± 10% | 550 | 2 |
| JDCC-P51-908420 | 10 ± 5% | 35 | 52180 ± 10% | 550 | 2 |
Certifications:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Tempo de transporte : uma semana pode chegar ao escritório do cliente após enviar de nós , .
temos embalagem interna de espuma e embalagem de pele suficientes .
Contato:
Mail: sales@pztceramics.com
Tel/Fax: 86-536-2221236
